Description
APPLICATION
Excellent for use where filtered intake or exhaust air is required. Efficiently supplies clean, filtered air for OEM machinery and equipment markets such as pressurizing electrical cabinets. Economical choice for
small unducted paint spray booths.
FEATURES AND BENEFITS
- Available with TEFC or explosion proof motors in single or three phase.
- Rugged spark-resistant aluminum propellers are standard.
- Standard OSHA style propeller guard for 12” – 30” diameter.

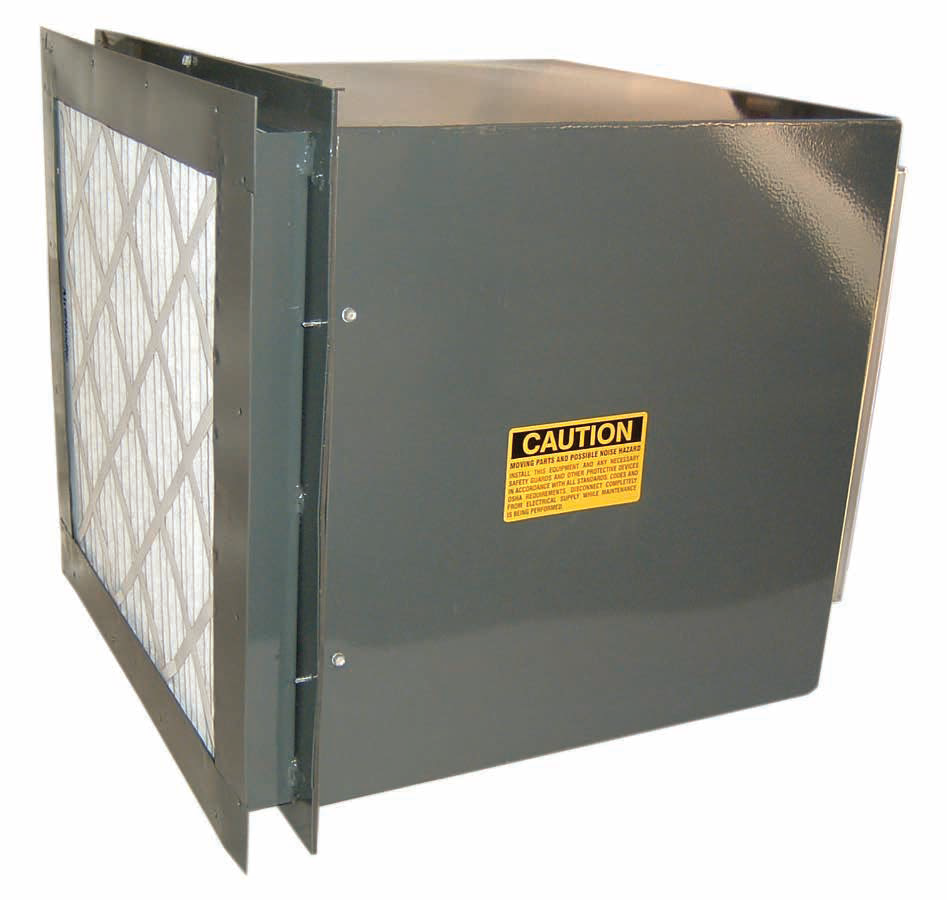

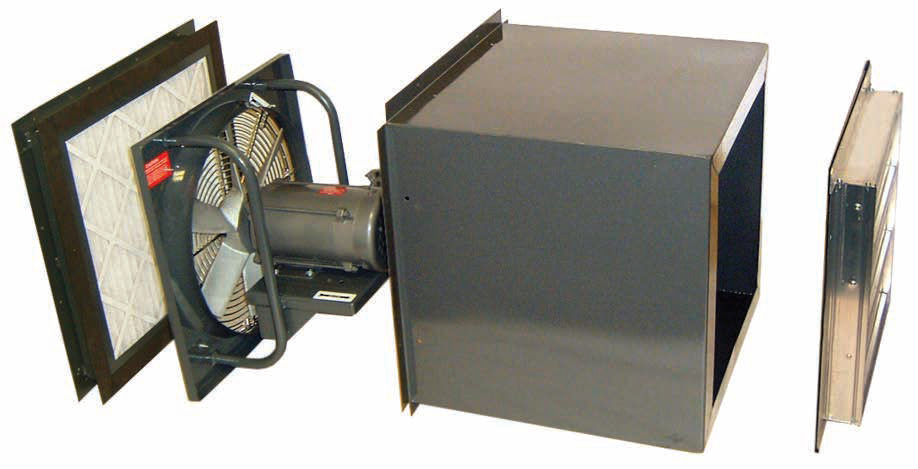

- Removable filter box section.
- Disposable 2” filters are high capacity, pleated type that meet MERV 8 rating.
MODEL 900 CAF – FILTERED EXHAUST FAN –DIRECT DRIVE PERFORMANCE DATA MODEL NUMBERS
| Model | BladeDiam. | HP | RPM | # of Filters | CFM w/Filters |
|---|---|---|---|---|---|
| CAF-912-1/4 | 12 | 1/4 | 1725 | 1 | 520 |
| CAF-916-1/4 | 16 | 1/4 | 1725 | 1 | 2000 |
| CAF-918-1/2 | 18 | 1/2 | 1725 | 1 | 3150 |
| CAF-920-1 | 20 | 1 | 1725 | 1 | 5900 |
| CAF-924-1 | 24 | 1 | 1725 | 4 | 6350 |
| CAF-930-1/2 | 30 | 1/2 | 1725 | 4 | 6300 |
| CAF-L936-2 | 36 | 2 | 1140 | 8 | 13875 |
| CAF-L942-2 | 42 | 2 | 1140 | 8 | 16000 |
| CAF-L948-3 | 48 | 3 | 1140 | 12 | 18750 |
OPTIONAL ACCESSORIES
- Inlet weatherhood for intake fans.
- Coatings available for harsh environments.
- Standard OSHA style propeller guard for 36” – 48” diameter.
